Optimized for Surf and Downwind: Tailored for surf, wing, kite, or SUP foilers seeking ultimate freedom and performance.
ETA- Early spring Email us about pre-orders dirtymermaidwindsurfing@gmail.com
Atlas
Front & Back Wings.
Generation 1.
Atlas
Front & Back Wings.
Prone, Wing, Downwind, Sup, Wake, Pump.
Unmatched efficiency, glide, acceleration and maneuverability for experienced riders.
Glide-Oriented Geometry: Low sweep with center of lift aligned for maximum efficiency at design speeds.
Advanced High Camber Airfoil: Optimized for maximum efficiency across a wide speed range, with a rear-loaded design that reduces surface area and boosts low-speed performance while maintaining stability and control.
Wide Range Efficiency: Maintains performance from low to high speeds.
Precision and Control: Offers reactive control for tight turns and deep carves.
Inflected Wingtips: Maximizes control through surface-piercing breaches with high resistance to ventilation.
Stock Sizes.
Feeling.
Sizes.

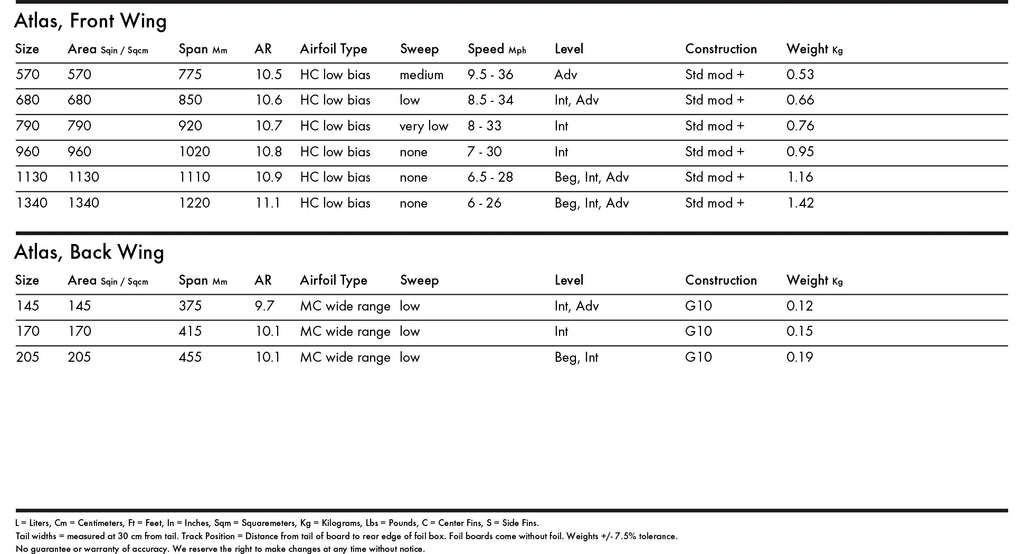

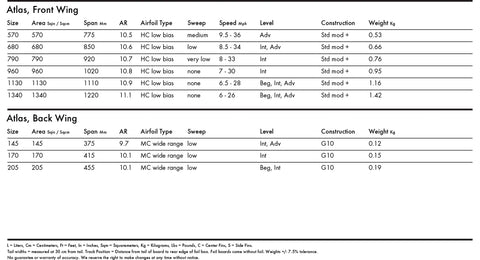

Due to the Atlas’ unique high camber profile, early lift, and stall resistance, we recommend sizing down 10-20% compared to other foils on the market. Available Sizes:

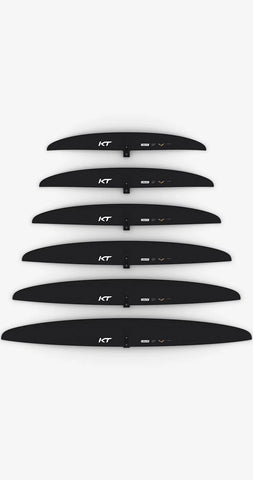

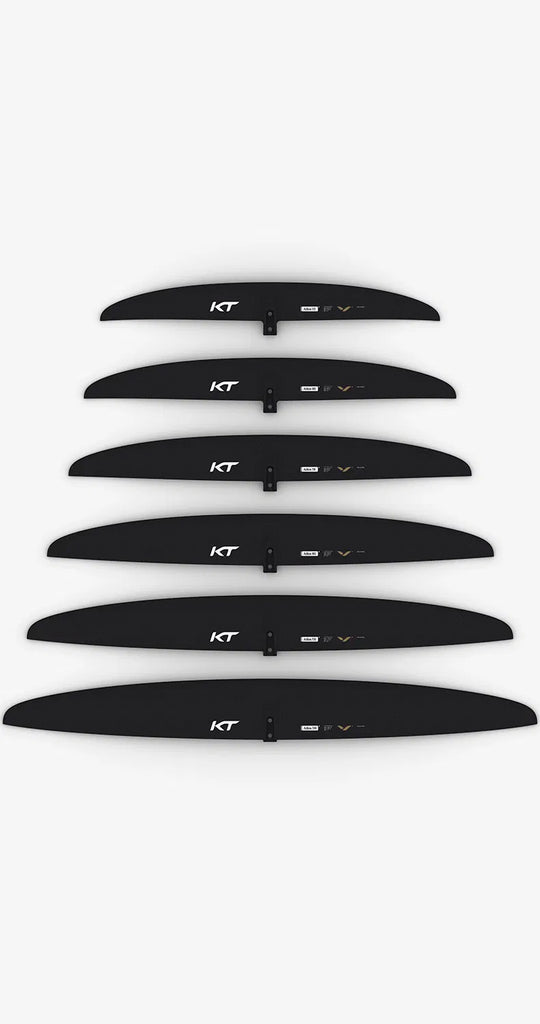

Front Wing: 570, 680, 790, 960, 1120, 1340 cm²
Back Wing: 145, 170, 205 cm²
Applies to Stock Model.
Description.
Intermediate to Advanced.
The Atlas series is crafted for intermediate to advanced riders seeking exceptional glide, acceleration, and a broad speed range without compromising turning ability.
Designed to optimize lift over a reduced surface area, the Atlas features a unique rear-loaded camber profile and low sweep, allowing it to operate efficiently even at surprisingly low speeds.
Tuned for early lift, effortless pumping, speed generation, and high resistance to stalling or “dropping out,” it delivers consistent performance across a wide range of conditions.
Inflected wingtips make breaching turns and ventilation virtually unnoticeable, making the Atlas ideal for any progressing wing, surf, or downwind foiler.
Despite its high aspect shape, the Atlas offers responsive maneuverability, carving, and glide, giving riders the freedom to master advanced maneuvers, tacks, and enjoy a smooth ride at any speed.
Speed.
High-Speed Performance: Exceptional acceleration and controlled top speeds.
Speed Ranges:
570 cm²: 9.5 – 36 mph
680 cm²: 8.5 – 34 mph
790 cm²: 8 – 33 mph
960 cm²: 7 – 30 mph
1120 cm²: 6.5 – 28 mph
1340 cm²: 6 – 26 mph
Finish.
Available in satin Carbon Finish and minimalist timeless logos.
Applies to Stock Model.
Hardware.

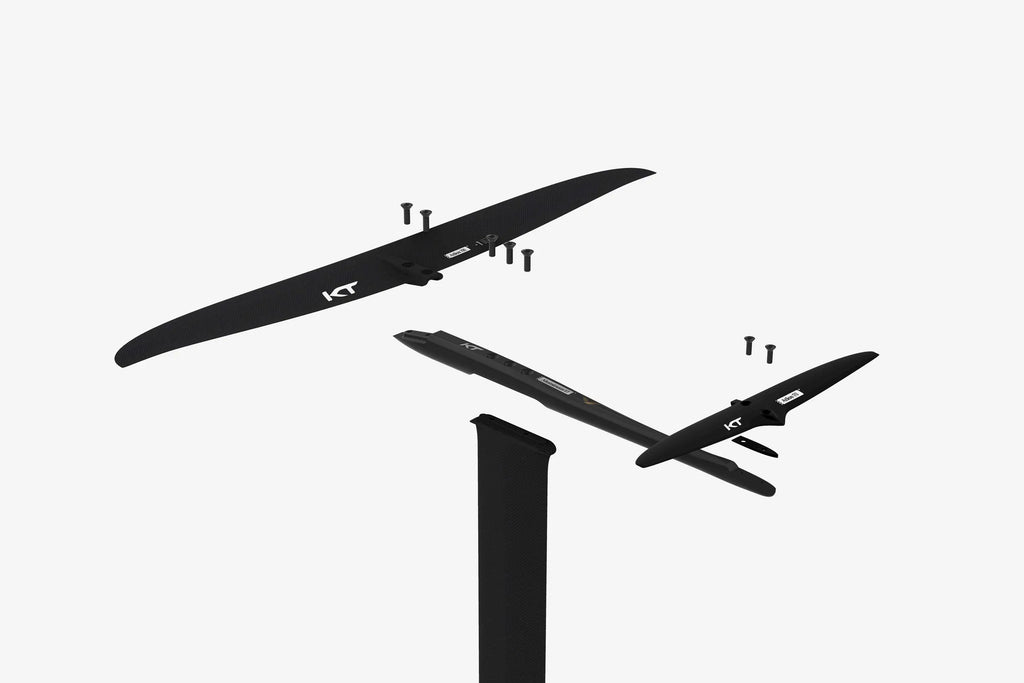

High-quality 316 Stainless Steel Torx hardware available separately as box sets or individual spare pieces.
Glide-Oriented Geometry
Low sweep with center of lift aligned for maximum efficiency at design speeds.
Advanced High Camber Airfoil
Optimized for maximum efficiency across a wide speed range, with a rear-loaded design that reduces surface area and boosts low-speed performance while maintaining stability and control.
Wide Range Efficiency
Maintains performance from low to high speeds.
Precision and Control
Offers reactive control for tight turns and deep carves.
Inflected Wingtips
Maximizes control through surface-piercing breaches with high resistance to ventilation.
High-Speed Performance
Exceptional acceleration and controlled top speeds.
Waves & Waters.
For all waves, anywhere, anytime. Small, big. Slow, fast. Onshore, sideshore. Even flat water lagoons.
Design.
Progression-Driven Design: Crafted to support and elevate rider progression.
Applies to Stock Model.
Bags.
Each model comes with its own bespoke formfitting protective bag. Travel bag available.
Applies to Stock Model.
Unmatched.
We are excited to unveil our new line of contest and race winning hydrofoils, designed to push the boundaries of progression, performance, and innovation. With meticulous R&D, cutting-edge profiles, and future proof connections, these foils are crafted to seamlessly pair with any board and offer an unparalleled range of speed, glide and control.
Three distinct series cater to a wide range of riding styles and skill levels, ensuring that every rider can find a perfect match. Each foil has been individually designed and optimally tuned to provide the most balanced and efficient flight across different combinations of wings, masts and fuselages.
Rigorously tested by elite athletes like Kai Lenny, as well as everyday riders, KT Foiling is committed to delivering exceptional quality and performance.
Applies to Stock Model.
